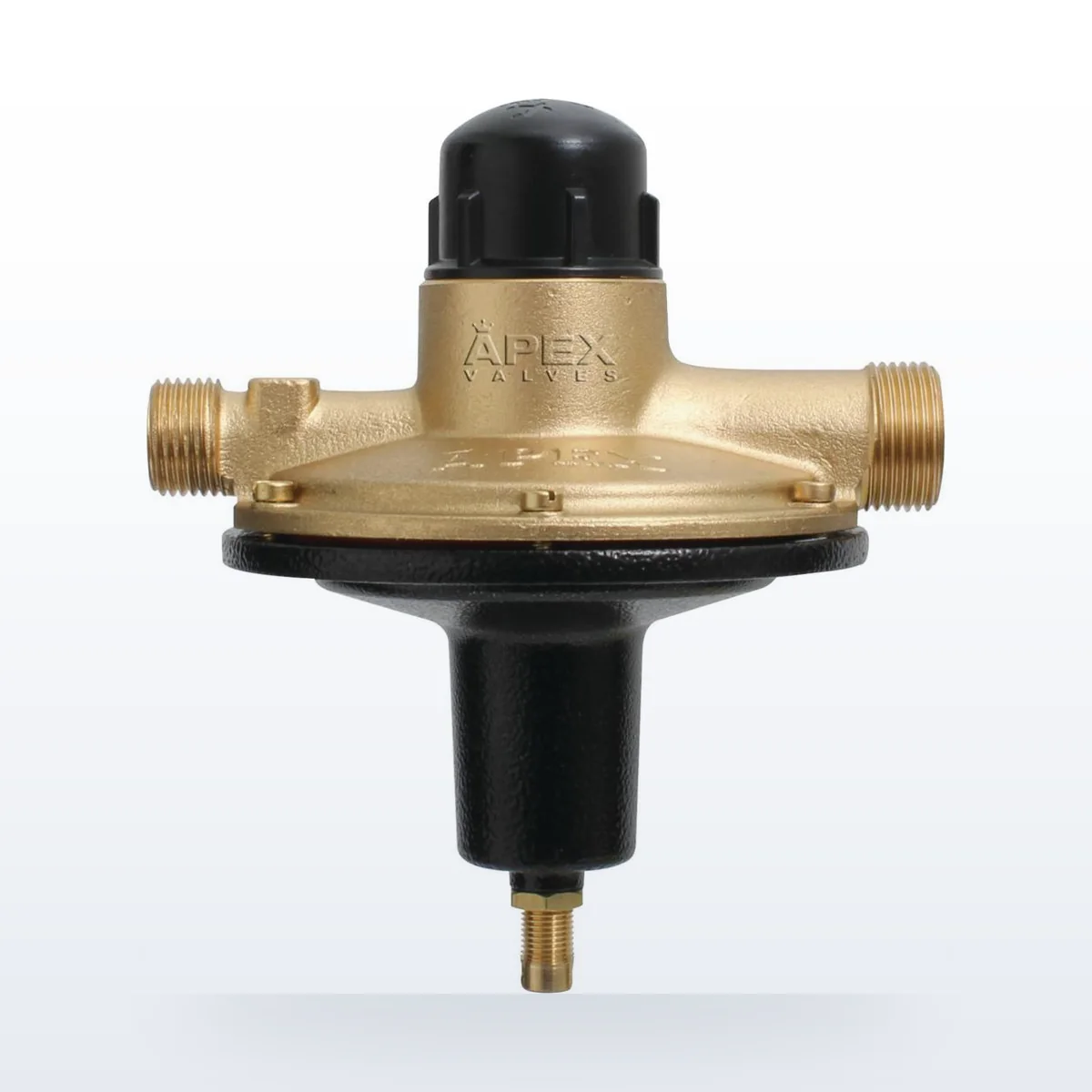

Apex Pressure Reducing Feed Valve 35kPa
We are confirming the warranty terms on this model with the supplier. Ask us and we will send them through before you order.
A low pressure copper cylinder is not built to take mains pressure. This valve sits on the cold feed and drops the incoming supply to 35kPa, which is what the cylinder and its open vent are designed around. It is the valve you need when you are replacing a low pressure cylinder and keeping the low pressure system. If you are installing a mains pressure cylinder, the valve you want is the pressure limiting stop valve in the Apex combi pack, not this one.
- Sets a low pressure cylinder at its design pressure
- For low pressure systems, not mains
Specifications
- Type
- Pressure reducing feed valve
- Outlet pressure
- 35kPa
- For
- Low pressure cylinders
- Supplier code
- FV 3.7
Figures are the manufacturer's published data for this model. Delivered across Auckland for a flat $30. Delivery details.
Need installation?
A cylinder has to be connected by someone licensed. We are, and we do it ourselves rather than passing you to a contractor.
Get an installation quoteTrade price, not retail
We buy on a plumbing trade account. The price above is what we pay plus our margin — there is no showroom markup in it.
Returns
Faulty or wrongly supplied, we sort it. We do not take cylinders back for a change of mind — a restocking fee applies if we agree to as a one-off. Read the terms.
